Non-Destructive PCB Analysis & Documentation Recovery Services
Non-destructive PCB analysis using advanced imaging. Recover schematics, BOM, and layout files with engineering precision.
In many cases, customers need to understand or reproduce a PCB without damaging the original board. This is especially important for high-value equipment, imported systems, or irreplaceable legacy hardware.
We provide non-destructive PCB analysis services using advanced inspection technologies, allowing us to study internal structures without physically altering the board.
What We Can Recover
From a single sample board, we can reconstruct:
- PCB layout data
- Schematic diagrams
- Complete BOM with component specifications
- Layer structure and routing logic
Key Technologies We Use
- Industrial CT / X-ray inspection for internal structure analysis
- High-resolution optical imaging
- Precision measurement tools for passive components
- Engineering-based signal reconstruction
This approach ensures that the original board remains intact, while still enabling accurate data recovery.
Not Just Analysis — Full Manufacturing Support
Once the data is reconstructed, we can immediately support:
- PCB fabrication (fast turnaround)
- SMT assembly (0201 capability, BGA support)
- Functional testing and validation

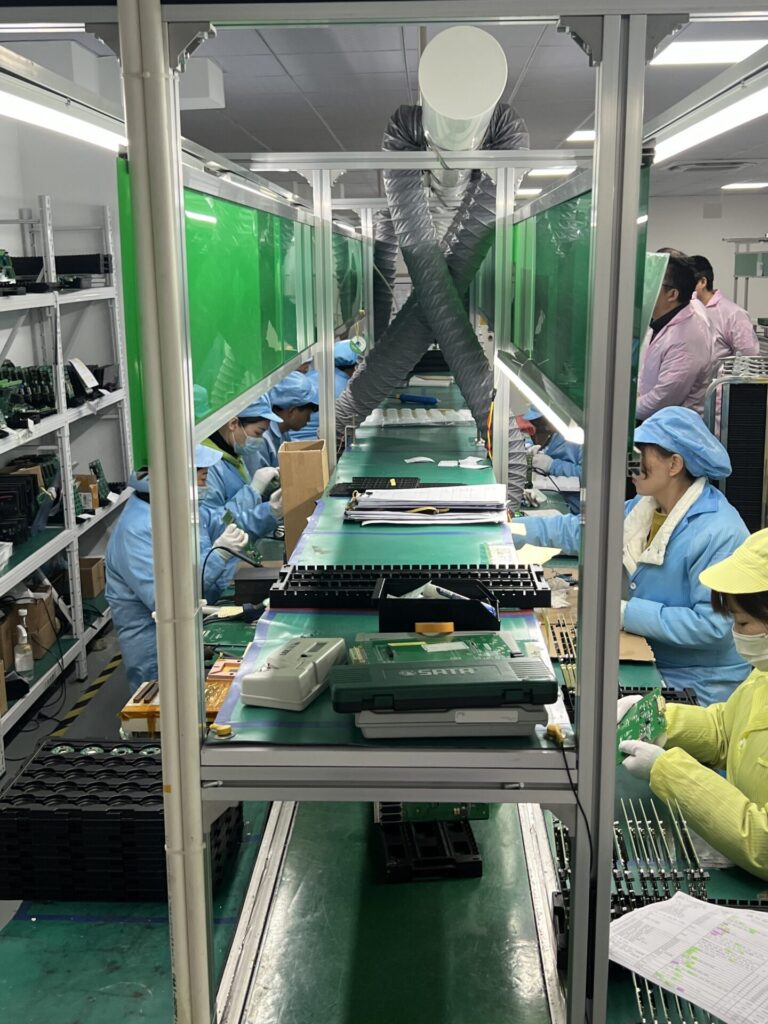

We operate as a source factory, meaning:
✔ Better cost control
✔ Stable lead times
✔ Consistent quality from prototype to mass production
Typical Use Cases
- Equipment repair and maintenance
- Backup of discontinued products
- Imported systems without documentation
- Engineering redesign and optimization
If you only have a working board and no design files, we can help you rebuild everything—from data to finished product.
