From Non-Destructive Analysis to Mass Production: A Complete PCB Reconstruction Solution

In real-world projects, the biggest challenge is often not the PCB itself, but the lack of supporting data:

• No design files
• Original manufacturer unavailable
• Equipment must keep running

To solve this, we offer a complete PCB reconstruction solution, covering everything from analysis to production.

Step 1: Non-Destructive Structural Analysis

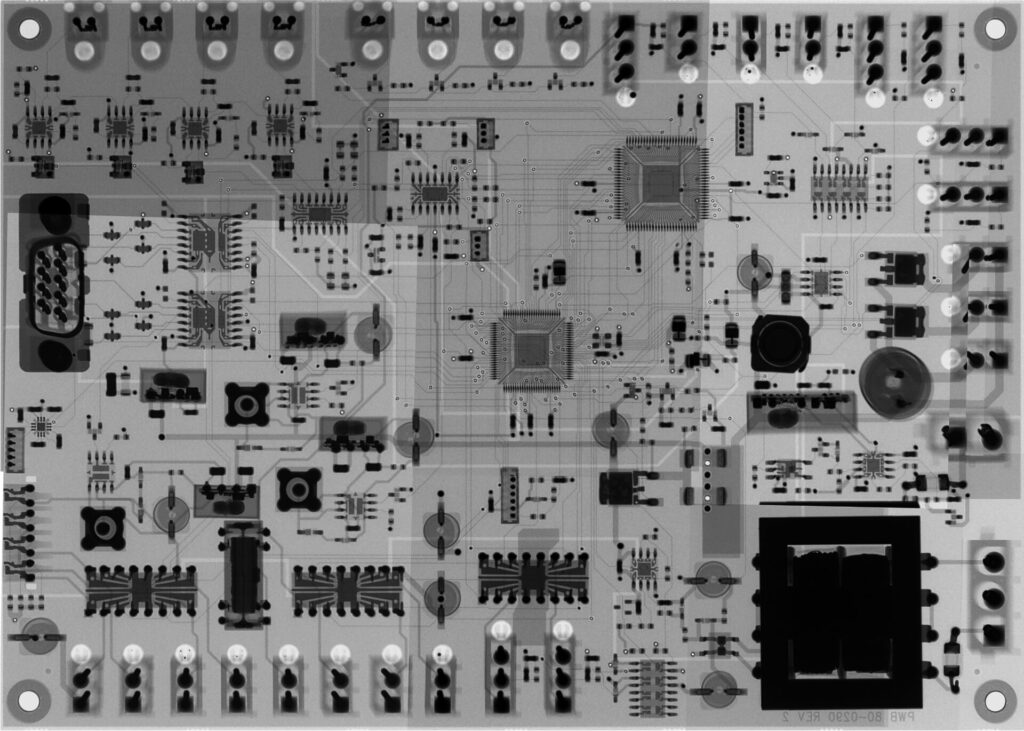

We start by analyzing the provided PCB using non-destructive methods:

• Multilayer structure identification
• Trace and routing reconstruction
• Component recognition
• Electrical connectivity analysis

The original board remains intact and can still be used as a reference or backup.

Step 2: Schematic & PCB Reconstruction

Based on collected data, our engineers perform:

• Schematic capture (functional-level reconstruction)
• PCB layout rebuilding (manufacturing-ready)
• Design optimization (DRC & DFM improvements)

This stage is not just replication—it’s engineering refinement.

Step 3: Prototype Validation

Before mass production, we validate the design through prototyping:

• Small-batch PCB fabrication
• SMT assembly using production standards
• AOI inspection (missing, wrong, or misaligned components)
• Functional testing

First Article Inspection (FAI) ensures everything is correct before scaling up.

Step 4: Mass Production

Once validated, we proceed to full production:

• PCB manufacturing
• SMT + DIP assembly
• Reflow and wave soldering
• Cleaning and inspection
• Final product delivery

All processes follow mass production standards to ensure consistency and quality.

Case Example (Brief)

A customer provided a discontinued industrial control board:

• No documentation available
• Equipment could not stop running
• No replacement in the market

We completed the project in approximately 2–3 weeks:

• Full data reconstruction
• Prototype validation
• Batch production delivery

The client successfully restored their production line.

Why Clients Choose Us

• Direct factory (no middleman)
• Support for both small and large batch orders
• Experienced engineering team
• Production-ready deliverables
• NDA available for confidentiality

Conclusion

Non-destructive PCB analysis is more than just a technical process—it is an engineering solution.

It helps answer critical questions:

• Can the equipment continue operating?
• Can production be restored quickly?
• Can costs be controlled effectively?

If you are looking for a reliable PCB engineering partner, feel free to contact us.

👉 [Start Your Recovery Project]
